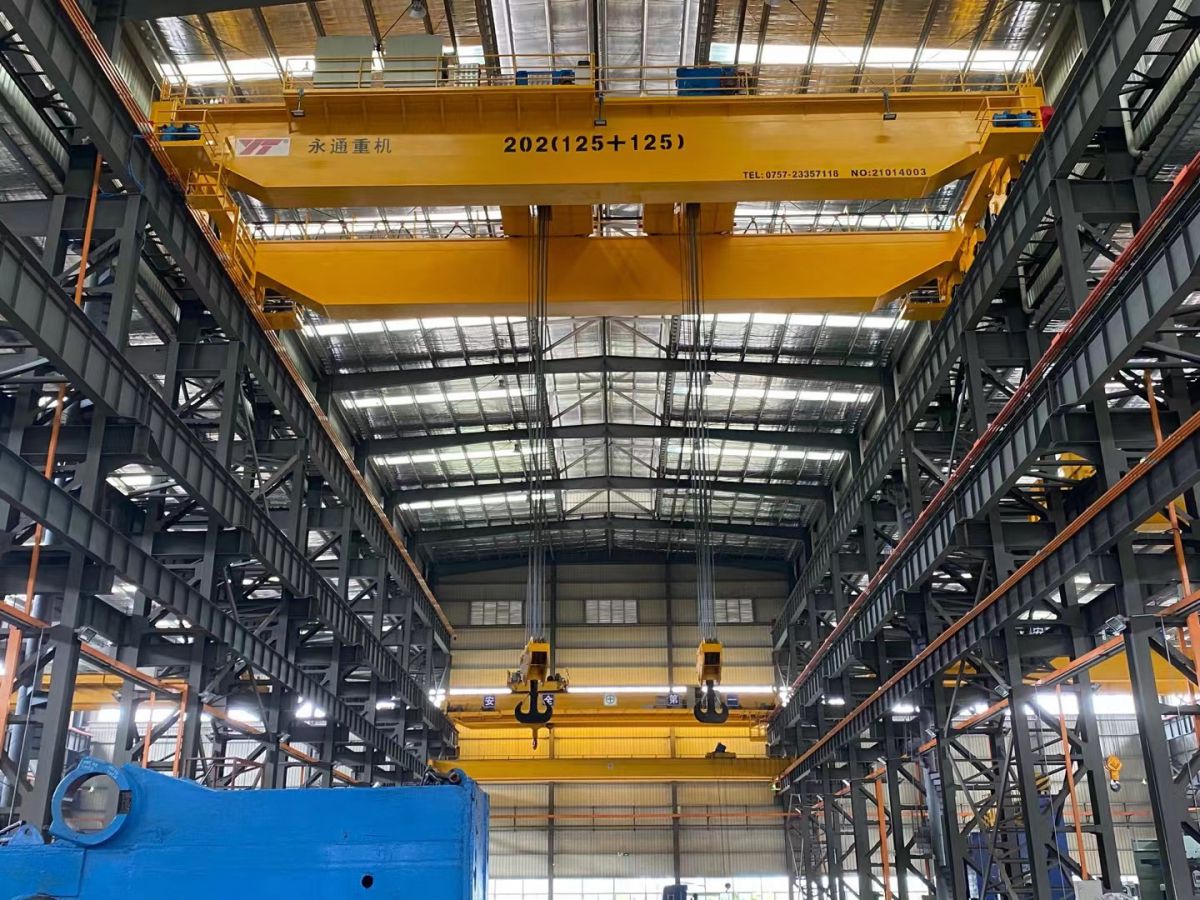

QE type double trolley bridge crane is on the basis of QD type double beam bridge crane, in its main beam to add a auxiliary trolley, and the original single hook to double hook. In this way, single hook can be realized independently or double hook lifting objects at the same time, improving the lifting efficiency and flexibility. The following will introduce the characteristics and application of QE double trolley bridge crane from the following aspects.

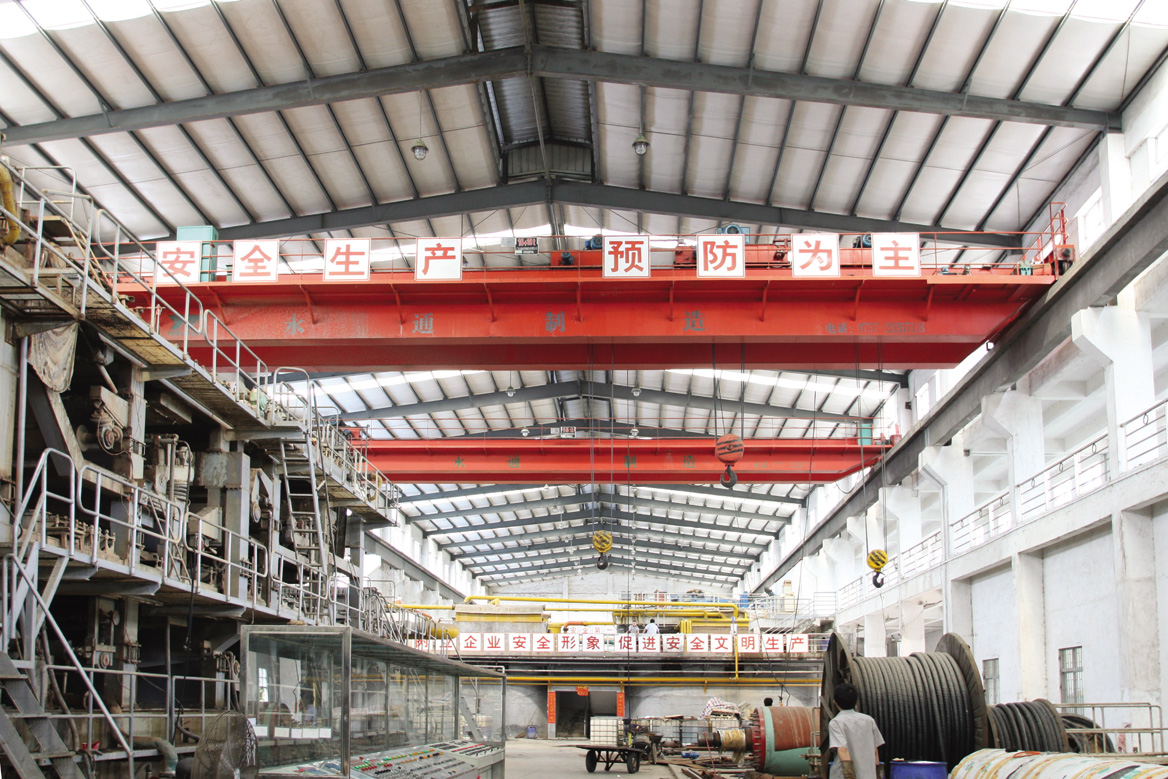

Application scenario

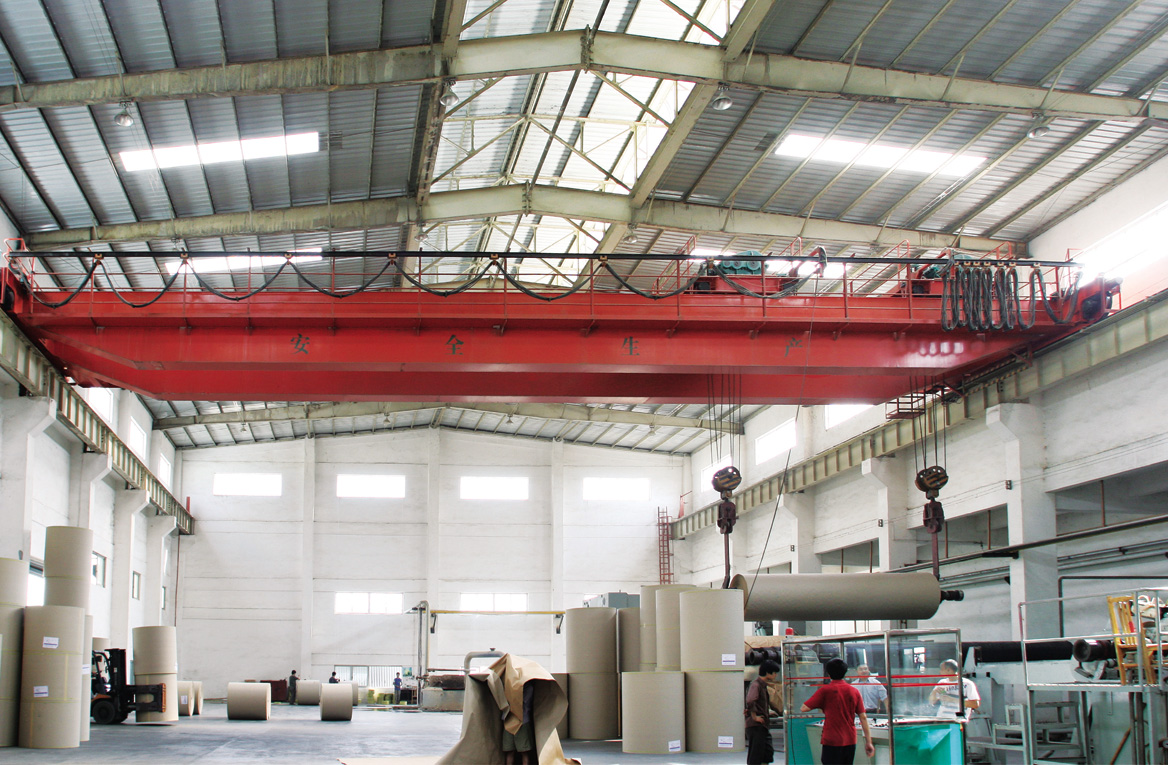

QE type double trolley bridge crane is suitable for the workshop or open warehouse of factories and mining enterprises to lift long materials (wood, paper rolls, pipe fittings, bars) and other not easy to pack or bulk materials. It can also load and unload steel pieces at the dock. It is mainly used in the following situations:

(1) When it is necessary to lift two objects in different positions or different specifications at the same time, two carts can be used to operate separately, saving time and space.

(2) When a strip object needs to be accurately positioned, two carts can be used to coordinate the operation, improving the positioning accuracy and security.

(3) When it is necessary to lift an ultra-long and overweight object, two carts can be used for simultaneous operation, and the load distribution can be balanced and the bending deformation can be reduced by adjusting the distance between the two hooks.

Structural characteristics

QE type double trolley bridge crane consists of the following parts:

(1) Main and auxiliary trolley: Both main and auxiliary trolley are designed with closed box structure, and are equipped with windproof guide rail to prevent wind from affecting its stability. Variable-frequency speed control is adopted in both main and auxiliary cars, and safety devices such as overload protector and stopper are equipped. The main and auxiliary cars are equipped with electric hoist as a lifting mechanism, and can choose different specifications and types of hoist according to user needs.

(2) Large vehicle operation mechanism: the large vehicle operation mechanism is composed of motor, reducer, brake, wheel set, etc., and adopts frequency conversion speed control mode to realize smooth start and stop. The crane running mechanism is equipped with safety devices such as anti-collision device and stopper to ensure the safe operation of the crane on the track.

(3) Bridge frame: bridge frame is composed of main beam, end beam and connecting parts. The main beam is a box structure with good stiffness and strength. The end beam is of box structure or welded steel plate structure and is connected with the main beam by high strength bolts. The bridge is equipped with walking platform, guardrail, cable sliding line and other accessories, convenient crane overhaul and maintenance.

(4) Electrical equipment: Electrical equipment includes control cabinet, operation room, operation table, signal lamp, etc. The control cabinet is a closed structure with neat wiring, fault display and protection device. The operation room is a fully enclosed structure with air conditioning, ventilation, lighting and other facilities, and is equipped with glass Windows and door and window switches. Operating platform for hanging or seat type structure, installed with a variety of buttons, switches, indicators and other operating components, and can be selected according to user requirements of different operating modes (ground remote control or cab operation).

Lifting performance parameter

The lifting performance parameters of QE type double trolley bridge crane mainly include the following aspects:

(1) Rated load: Rated load refers to the maximum mass that can be safely lifted by the crane under normal working conditions. The rated load of QE double trolley bridge crane is generally 5~320 tons, of which the rated load of the main trolley is generally 5~200 tons, and the rated load of the auxiliary trolley is generally 5~120 tons.

(2) Span: Span refers to the center distance between two tracks when the crane runs horizontally on the track. QE type double trolley bridge crane span is generally 10.5~31.5 meters.

(3) Lifting height: Lifting height refers to the vertical distance between the lowest and highest position of the hook. QE type double trolley bridge crane lifting height is generally 6~18 meters.

(4) Working speed: working speed refers to the maximum speed reached when each part of the crane moves under normal working conditions. QE type double trolley bridge crane working speed generally includes the following:

Wagon speed: Wagon speed refers to the maximum speed reached by the wagon when running horizontally on the track. QE type double trolley bridge crane truck running speed is generally 20~40 meters/minute.

Trolley running speed: The trolley running speed refers to the maximum speed reached when the trolley runs horizontally on the main beam. QE type double trolley bridge crane trolley running speed is generally 20~40 meters/min.

Lifting speed: Lifting speed is the maximum speed at which the hook can be lifted or lowered in a vertical direction. QE type double trolley bridge crane lifting speed is generally 0.4~10 meters/min.

(5) Working level: Working level refers to the load state and the number of working cycles borne by the crane in a certain time. QE type double trolley bridge crane work level is generally A5 or A6, that is, medium or heavy work level.

Working environment

QE type double trolley bridge crane is suitable for the following working environment:

(1) Temperature: Temperature refers to the temperature range of the crane. QE type double trolley bridge crane is suitable for -25℃~+40℃ temperature range.

(2) Humidity: Humidity refers to the relative humidity range of the crane. QE type double trolley bridge crane is suitable for the relative humidity does not exceed 85% environment.

(3) Height: height refers to the elevation of the crane. QE double trolley bridge crane is suitable for the altitude of no more than 2000 meters.

(4) Power supply: power supply refers to the voltage and frequency required to supply crane electrical equipment. QE type double trolley bridge crane is suitable for three-phase AC 50Hz, 380V or 460V or 600V power supply.

(5) Wind power: wind power refers to the wind pressure that affects the stability and safety of the crane. QE type double trolley bridge crane is suitable for indoor or outdoor places with shelter where the wind does not exceed level 6.

QE type double trolley bridge crane is a kind of heavy lifting equipment with high efficiency, high precision, high safety and high reliability, widely used in metallurgy, electric power, petrochemical, shipbuilding, machinery and other industries. The crane adopts double trolley structure, which can realize synchronous or asynchronous operation to meet the needs of different working conditions. The crane adopts the advanced frequency conversion speed control system to realize the smooth start and stop, reduce the impact and vibration. The crane adopts perfect safety device and protection device to ensure the safe operation of the crane in various environments. The crane has good versatility and adaptability, can be customized according to user needs of different specifications and parameters of the product.
